Belt bends /
curved belt conveyors
Reliable curve technology – Built thousands of times


We are specialists in belt curves / curved belt conveyors. We are known professionals and have always been considered market leaders in this segment.
Whether transporting the heaviest goods or the tiniest items, such as coins, cookies, tablets or similar products, nothing is too big or small thanks to our small cylindrical deflection rollers measuring from 47 mm to 8 mm. With our innovative design and use of high-quality materials, you benefit from long-lasting quality products from MAX DÖRR.
Specially designed for use in the food sector or wash down operations, our construction can be manufactured either in partial or complete stainless steel if desired.

Kontakt

Questions?

We’re here for you:

T   +49 (0) 7267 / 9122-0
E   info@max-doerr.com

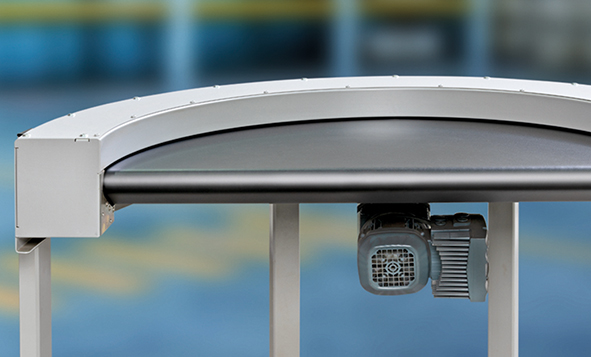

Belt bend ST 22

  • Sophisticated design, tried and tested
  • Reversible conveying direction
  • Small, cylindrical deflection rollers
  • Perfectly suited for the food sector
  • Also available as a spiral conveyor
  • Available entirely in stainless steel
  • Special dimensions optional

Download pdf

Technical data

Conveying angle:continuously adjustable between 30° – 180° (special angles available)
Usable width:continuously adjustable between 200 mm – 1500 mm (broader usable widths available upon request)
Internal radii:continuously adjustable from 200 mm – 1500 mm (larger radii available upon request), an internal radius of 0 mm can be attained for a 180° conveying angle
Conveying speeds:up to 1 m/s, constant and adjustable (higher speeds available upon request)
Conveying direction:reversible
Drive:friction drive, motor is installed below or laterally to the center of the external radius
Belt deflection rollers:cylindrical, you can choose between Ø 47 mm, Ø 22 mm, Ø 16 mm or Ø 8 mm
Continuous operation:loads of up to 75 kg (higher loads upon request)
Stop-start mode:available upon request
Conveyor belt:endless plastic belt with two textile inserts, anti-static, structured or smooth carrying side, FDA quality if required
Belt guide:guide rollers fitted symmetrically at the belt outer radius, which roll off centrally via plastics strips
Design:varnished steel, some parts in stainless steel or completely in stainless steel
Special fittings:optional, upon request (side guides, belt scraper etc.)

Specially for
small ITEMS:
cylindrical
deflection rollers with
a diameter of just 8 mm.

Special technology enables
us to attain

an internal radius of 0 mm
at a conveying angle of 180°.

SPECIAL ANGLES,
WIDTHS AND RADIUS,
AS WELL AS
SPECIAL OPTIONS,
ARE AVAILABLE UPON REQUEST!
